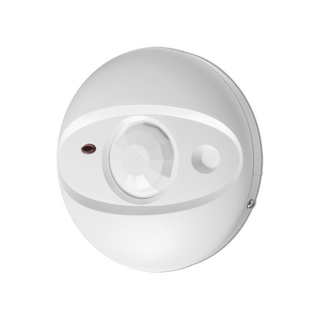

IR360 - Ceiling-mount PIR Detector

Security Systems

Fire Control Systems

Designed for applications which require high sensitivity and cover, such as rooms with large amounts of view restricting furniture.

FEATURES:

Ceiling mount for environments with a restricted field of vision

Temperature compensation for improved performance at critical temperatures

Sensitivity adjustment to configure the detector for normal or hostile environments

Excellent RF immunity

Exceptional white light immunity

Operating voltage 9.5 ÷ 14 Vdc

Standby current: 15 mA

Case protection grading: IP50

Dimensions (WxHxD): 115x115x25 mm
