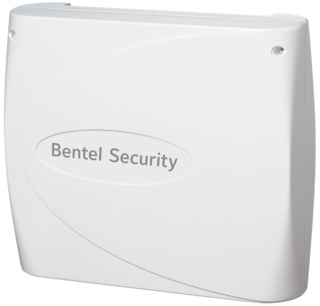

ABS 630 - Absoluta 630 hybrid control panel

Control Panels


Security Systems
Fire Control Systems



Absoluta 630 is a new member of the well-known Absoluta family which opens new opportunities to dealers and installers, especially in small and medium installations market segment.

The key benefit of Absoluta 630 is the significant reduction of installation time. The panel can be programmed with a simple installation app, based on Bluetooth connection between the smart phone and a built-in Bluetooth chip on the device. The same Bluetooth connection makes the panel future-proof, allowing for firmware upgrades whenever new features are developed and ready to be deployed.

For full installation flexibility, the panel is equipped with 6 on-board zones, expandable to 30 (wired or wireless), 2 outputs expandable to 16, 8 partitions and 2.6 A power supply.

As a member of Absoluta family, the Absoluta 630 control panel retains the most valued features of the family, including but not limited to:



Features, Benefits & Value

Feature

Benefit

Value

20 types of PowerG devices supported

Opportunity to address all potential risks that occur in residential or commercial environments

More customers and more installations resulting in higher revenues

Wireless range, up to 2 km in open air

Flexible installation

Cost and time savings thanks to repeater-less system and no cabling. Faster installation

Extended battery life

Lower maintenance cost

Reduction of truck rolls and increased customer satisfaction

Encrypted wireless transmission

Higher level of security

Increased end-users peace of mind. Reduce potential for breaches

Home automation capabilities with a powerful event-action engine, now also with temperature and light data from PowerG sensors

Support for additional customer needs beyond security


Increased customer satisfaction, more capabilities from the same device

Voice communicator with customized audio messages

Support for self-monitoring installations

Less typing, fewer errors

Several communication channels: PSTN, GSM, GPRS, IP

Always-connected system with redundant transmissions


Reliable communication with no service interruptions


User app on iOS and Android platforms

Allows end-user to remotely manage the control panel and receive notifications about system status and events

Increased end-users peace of mind
Effortless user interaction with an alarm system



Compatibility & Ancillaries
Absoluta Plus is compatible with the following BW devices:

PIR Detector

BW-802

Magnetic Contact with Auxiliary Input

BW-MCN/BW-MCB

PowerG Keyfob

BW-RCH

Vanishing Magnetic Contact

BW-303

Shock Detector with Magnetic Contact and Auxiliary Input

BW-SHK

360° Ceiling-Mount PIR Detector

BW-862

Outdoor Curtain PIR Detector

BW-902

Outdoor Magnetic Contact with Auxiliary Input

BW-312

Curtain PIR Detector

BW-IRT

Dual Technology Detector

BW-DTM

Outdoor PIR Detector with Anti-Masking

BW-ODT

Smoke and Temperature Detector with Siren

BW-SMD

Flood Detector

BW-FLD

Glass-Break Detector

BW-GBD

Indoor Siren

BW-SRI

Outdoor Siren

BW-SRO

PowerG Repeater

BW-REP





  • Certification: CE
  • Supported languages: English, Italian, French, Spanish



REGIONAL AVAILABILITY
Africa
Europe (outside Italy)
Middle East
Italy
