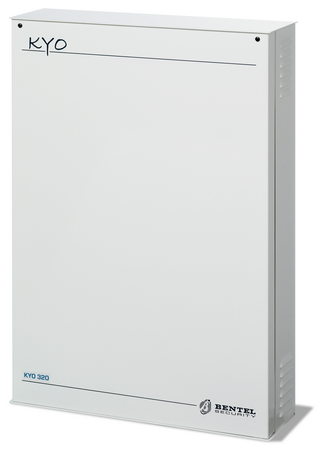

KYO320 - Expandable Hybrid Control Panel

Control Panel for Large-scale Installations

Security Systems

Fire Control Systems

FEATURES:

8 on-board zones

Expandable to 264 wired zones

Expandable to 64 wireless zones 433 and/or 868 MHz frequency)

6 programmable outputs on-board: 3 (3 A relay) + 3 (1 A open-collector)

Expandable to 102 programmable outputs connect to 32 remote LCD keypads

10,000 event buffer size

5 installers and 195 users codes

500 keys/tags

16 + 16 keyfobs

32 readers

50 telephone numbers

2 operating modes: Normal or “EN-50131”

Comprehensive scheduler with 64 timers for basic home automation functionality

Integrated access control functionality

KYO320 Accessories:

K3/VOX2: 62 message voice board 8 minutes and 44 seconds message time total

K3/PRT2: Printer card

M-IN/OUT: Module with 6 programmable IN/OUT terminals

B-ISOL: Isolator module for isolating two sections of the BPI Bus

DPU-414-30B-E: Thermal printer for KYO320

PW-4007-E1-E: AC adapter for printer DPU-414

NAP-0112-025: Rolls of thermal paper for printer DPU-414 (5 pcs)

REGIONAL AVAILABILITY

Worldwide
